The search for the second wall in Jerusalem

Western Wall, Jerusalem, Israel
Western Wall, Jerusalem, Israel

Within the framework of the DFG-funded project of the German Protestant Institute of Archaeology (GPIA) and the Technical University of Ilmenau, our two colleagues J. Sachs and T. Just searched for the Herodian city wall under the present Christian quarter of the Old City of Jerusalem. The technical aim of the project was to use a new type of georadar to explore and prove the course of the so-called second wall.



The knowledge about the location of this second city wall was lost after the reconstruction of Jerusalem. Earlier attempts to identify this wall have been unsuccessful. Until now.

The history of the second city wall

Herodis the Great renewed the temple in the second half of the 1st century B.C. and founded a new city district west of the temple area. Thus, he also built a second city wall to protect this settlement expansion. During the Jewish war, this wall was besieged and destroyed by Titus in 70 AD. Later, Jerusalem was levelled and rebuilt with its own rubble. In this process, knowledge about the course and the localization of the second wall was lost.

Challenges To find the Wall

  • Due to UN restrictions and the dense building development on the site, no new excavations are possible in the Old City of Jerusalem. Therefore, ground penetrating radar (GPR or georadar) was chosen as a non-destructive exploration method.
  • The city, destroyed in 70 AD, was later leveled and rebuilt with the existing rubble. This means that only a low radar contrast is to be expected, since the rubble is made of the same material as the wall.
  • The radar method must allow a penetration depth of more than 15 to 20 m which only works in the shortwave and FM radio range.
  • The antennas must be very small (which, according to classic antenna concepts, is contrary to low operating frequencies) and their radiation into the environment must be minimized to avoid distortions of the public radio services and to prevent reflections of the sounding waves within the narrow alleys of the old city.
  • Commercially available ground penetrating radar cannot be used under the conditions in Jerusalem. They are too large, their bandwidth is too narrow and with their strong transmission pulses they could interfere with public radio communications.

The new antenna concept

In order to build a suitable ground penetrating radar system, different methods of antenna design and sounding signals than the traditional ones had to be used.

The Large Current Radiator (LCR), which was first mentioned by H. F. Harmuth more than 35 years ago, was redesigned and improved at key points and operated with pseudo-random signals that are unconventional in georadar.



The result is an efficient and small antenna principle which can be used for georadar and microwave imaging. The radiation element, which is only 10 cm long, generates a probing signal with an operative frequency band of 5-250 MHz. The scaling of the antennas also allows operation in higher frequency bands in the GHz range for non-destructive testing and medical microwave imaging.

Implementation and outcome

To avoid the heavy traffic in the streets of Jerusalem, the measurements were always taken after midnight. A total of four measurement campaigns were carried out in which the radar was repeatedly tested and improved.

Using historical evidence, topographical considerations and excavations below the Church of the Redeemer, the team narrowed down the search area.

First, the team tried to find the second wall from a deep cut below the Church of the Redeemer, unfortunately with little success. In the direction of the east wall no evidence for the existence of the second wall was found neither.



The measurements in the streets of Jerusalem were more successful. During the measurements in the streets and alleys of Jerusalem, the team found weak but clear evidence of the existence of the wall crown. Right next to the Church of the Redeemer they found a clue to the Wall.



Using all the evidence from the radar measurements, archaeological evidence and typographical events, the probable course of the second city wall was interpolated using the geophysical data.



Even if the exploration of the second wall is not possible due to the lack of excavation possibilities, our colleagues have come a little closer to the secret of the second city wall.

Map

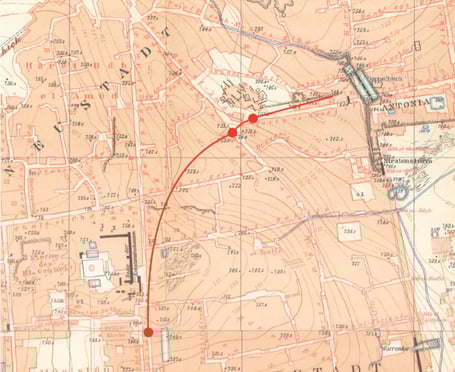

Predicted course of the second wall based on radar measurements, archaeological evidence, topographic features and structuring of the former Roman quarry in the Archaeological Park below the Church of the Redeemer (map after Konrad Schick 1900)
