Layer Thickness Radar

With the Ilmsens ultra-wideband layer thickness radar we can measure the layer thickness of asphalt in real time – before and during the paving process or afterwards for controlling purposes.

Measurement System m:explore.eis

Analyse properties of any fluids with our m:explore.eis measurement system – our technology can assess properties of liquids!

m:explore

Discover our technology and get to know the capabilities of microwave sensing. With the versatile m:explore M-Sequence System, we provide just the right tool for you.

Ilmsens technology: Impedance spectroscopy, Network analysis & time-domain reflectometry, Short-range radar, Microwave imaging

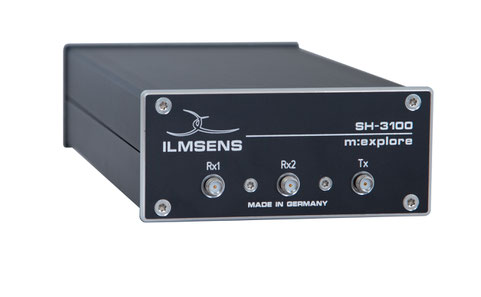

m:explore

Evaluating microwave sensing

  • Impedance spectroscopy
  • Network analysis & time-domain reflectometry
  • Short-range radar
  • Microwave imaging

Learn more about the m:explore.


m:explore.hv

Test the suitability or quality of insulation materials or dielectrics reliably and at high speed. The m:explore.hv uses a combination of high voltage & broadband measurement signals to test the dissipation factor tanδ and permittivity εr.

m:explore.hv

High Voltage Measurement System for Dielectrics and Insulation Materials

  • Prevent defective components through better analysis of insulation materials
  • Reliable information on the suitability of insulating materials
  • Cost-effective
  • Time-saving measurement

Learn more about the m:explore.hv.


m:mimo

Developed for channel sounder measurements, the m:mimo system provides an extremely high measurement rate. Covering MIMO 5G-measurements, it is also suitable for many other applications requiring high-speed MIMO UWB-measurements.

Ilmsens Technology: High-speed UWB channel sounding, Detection & tracking, High Speed Short-Range Radar, Microwave Imaging

m:mimo

MIMO UWB System

  • High-speed UWB channel sounding
  • Detection & tracking
  • High-speed short-range radar
  • Microwave imaging

Learn more about the m:mimo.


UWB Antenna IS-AV-0106G

The IS-AV-0106G UWB Vivaldi antenna is optimized for high gain, low VSWR, and a clean time-domain response. It is ideally suited for our next generation ultra-wideband (UWB) sensor m:explore.

UWB antenna

UWB antenna

RF specifications:

  • UWB operation:
    • -3 dB: 550 MHz .. 4 GHz typ.
    • -10 dB: 500 MHz .. 5 GHz typ.
    •  -20 dB: 450 MHz .. 6 GHz typ.
  • VSWR:
    • Main band: < 2.0:1 typ. @ 1.0 .. 6 GHz
    • Ext. band: < 3.0:1 typ. @ 0.6 .. 10 GHz
  • Effective aperture width: 90 mm
  • Gain: 8 dBi typ. midband
  • Power handling (cw): 20 W
  • Connector: 50 Ω SMA female

For more information view datasheet.



Contact us for more details.


UWB Experimentation Kit

The UWB Experimentation Kit enables a quick start. It contains everything you need to run a successful measurement.

UWB Experimentation Kit

UWB Experimentation Kit

Content:

  • 3x  UWB antennas (Ilmsens IS-AV-0106G BW: 1..6GHz)
  • 3x  Low-loss precision test cables (SMA-SMA, DC-18GHz, extra rugged, triple shielded, length 1m)
  • 1x  Set of precission attenuators (DC-18GHz, 2W, 2x3dB, 2x6dB, 2x10dB)
  • 1x  SMA torque wrench

Contact us for more details.
